Researchers catch protons in the act of dissociation with SLAC’s ultrafast 'electron camera'

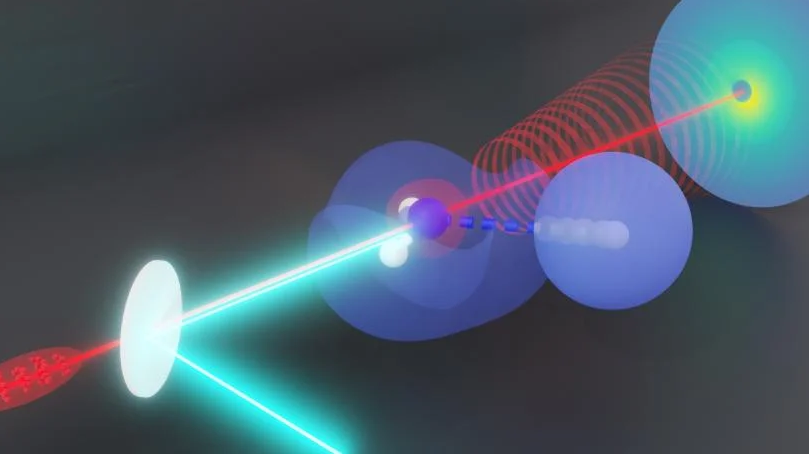

Irradiating ammonia – which is made up of one nitrogen and three hydrogens – with ultraviolet light causes one hydrogen to dissociate from the ammonia. SLAC researchers used an ultrafast “electron camera” to watch exactly what that hydrogen was doing as it dissociated. The technique had been proposed, but never proven to work, until now. In the future, researchers could use the technique to study hydrogen transfers – critical chemical reactions that drive many biological processes. (Nanna H. List/KTH Royal Institute of Technology)

Proving the technique works puts scientists one step closer to unraveling the mysteries of hydrogen transfers.

Scientists have caught fast-moving hydrogen atoms – the keys to countless biological and chemical reactions – in action.

A team led by researchers at the Department of Energy’s SLAC National Accelerator Laboratory and Stanford University used ultrafast electron diffraction (UED) to record the motion of hydrogen atoms within ammonia molecules. Others had theorized they could track hydrogen atoms with electron diffraction, but until now nobody had done the experiment successfully.

The results, published October 5 in Physical Review Letters, leverage the strengths of high-energy Megaelectronvolt (MeV) electrons for studying hydrogen atoms and proton transfers, in which the singular proton that makes up the nucleus of a hydrogen atom moves from one molecule to another.

Proton transfers drive countless reactions in biology and chemistry – think enzymes, which help catalyze biochemical reactions, and proton pumps, which are essential to mitochondria, the powerhouses of cells – so it would be helpful to know exactly how its structure evolves during those reactions. But proton transfers happen super-fast – within a few femtoseconds, one millionth of one billionth of one second. It’s challenging to catch them in action.

One possibility is to shoot X-rays at a molecule, then use the scattered X-rays to learn about the molecule’s structure as it evolves. Alas, X-rays only interact with electrons – not atomic nuclei – so it’s not the most sensitive method.

To get to the answers they were looking for, a team led by SLAC scientist Thomas Wolf, put MeV-UED, SLAC's ultrafast electron diffraction camera to work. They used gas-phase ammonia, which has three hydrogen atoms attached to a nitrogen atom. The team struck ammonia with ultraviolet light, dissociating, or breaking, one of the hydrogen-nitrogen bonds, then fired a beam of electrons through it and captured the diffracted electrons.

Not only did they catch signals from the hydrogen separating from the nitrogen nucleus, they also caught the associated change in the structure of the molecule. What’s more, the scattered electrons shot off at different angles, so they could separate the two signals.

“Having something that’s sensitive to the electrons and something that’s sensitive to the nuclei in the same experiment is extremely useful,” Wolf said. “If we can see what happens first when an atom dissociates – whether the nuclei or the electrons make the first move to separate – we can answer questions about how dissociation reactions happen.”

With that information, scientists could close in on the elusive mechanism of proton transfer, which could help to answer myriad questions in chemistry and biology. Knowing what protons are doing could have important implications in structural biology, where traditional methods like X-ray crystallography and cryo-electron microscopy have difficulty “seeing” protons.

In the future the group will do the same experiment using X-rays at SLAC’s X-ray laser, the Linac Coherent Light Source (LCLS), to see just how different the results are. They also hope to up the intensity of the electron beam and improve the time resolution of the experiment so that they can actually resolve individual steps of proton dissociation over time.

The research was funded in part by the DOE Office of Science. MeV-UED is an instrument of SLAC’s LCLS X-ray laser facility. LCLS is a DOE Office of Science user facility.

Reference

Femtosecond Electronic and Hydrogen Structural Dynamics in Ammonia Imaged with Ultrafast Electron Diffraction

Elio G. Champenois, Nanna H. List, Matthew Ware, Mathew Britton, Philip H. Bucksbaum, Xinxin Cheng, Martin Centurion, James P. Cryan, Ruaridh Forbes, Ian Gabalski, Kareem Hegazy, Matthias C. Hoffmann, Andrew J. Howard, Fuhao Ji, Ming-Fu Lin, J. Pedro F. Nunes, Xiaozhe Shen, Jie Yang, Xijie Wang, Todd J. Martinez, and Thomas J. A. Wolf

Phys. Rev. Lett. 131, 143001 – Published 5 October 2023

https://journals.aps.org/prl/abstract/10.1103/PhysRevLett.131.143001
