What do we see in a mirror?
Researchers at Aalto University developed metasurfaces with extreme angle-asymmetric response. The new device can be a good or bad reflector depending on the angle the light hits it.

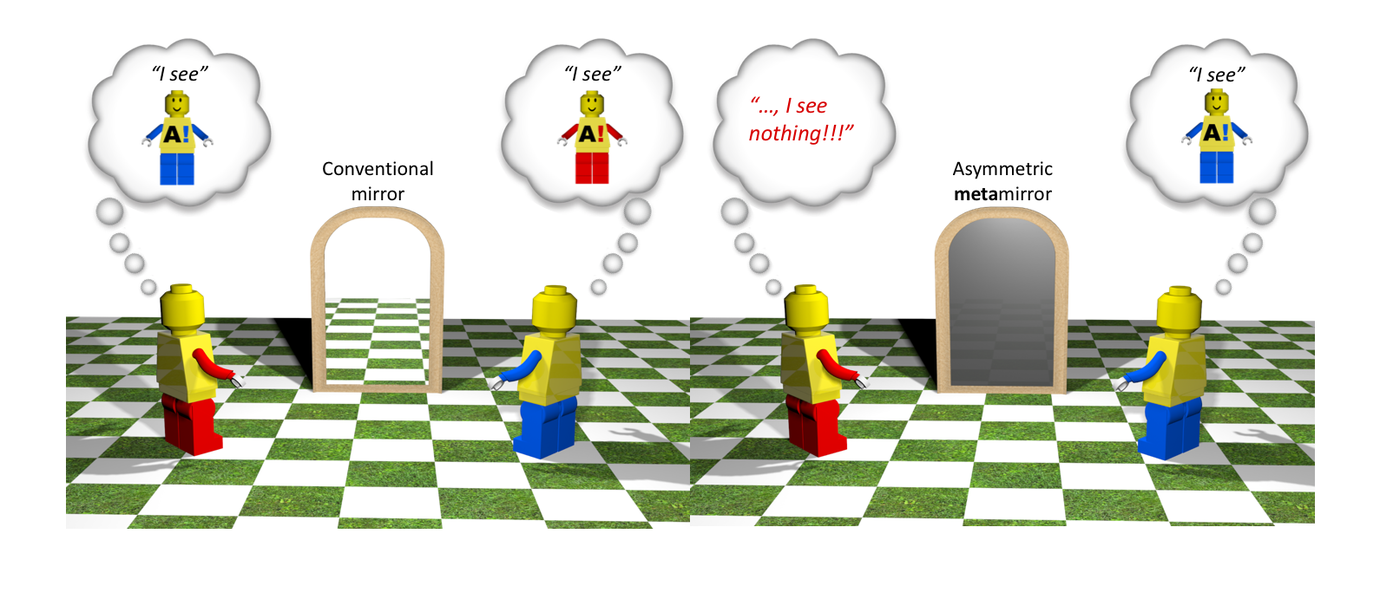

When we look at a mirror from an angle, we see the image of the object located at the opposite direction. This is because the scattering light of the object is reflected by the mirror and then perceived by observers' eyes. This process, known as specular reflection, is angle-symmetric: if the person stands on the left side of mirror can see the right person, then the right person can always see the left one with the same clearness.

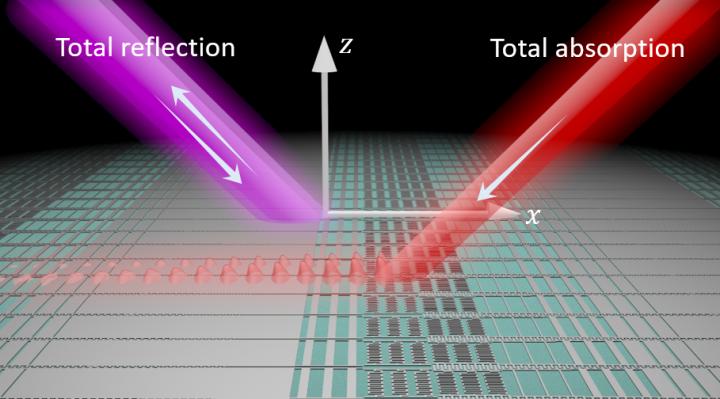

Conventional mirrors always have symmetric responses for light coming from both sides of the mirrors. Recently, researchers at Aalto University have successfully broken the angle-symmetric response of a mirror using the concept of gradient metasurfaces. The artificially synthesized surfaces can be designed to look "bright" at one direction, while "dark" for the observer at the opposite direction.
Metasurfaces are planar artificial materials, composed of periodic arranged meta-atoms at subwavelength scale. Meta-atoms are made of traditional materials but, if they are placed in a repeating patterns, the array can show many unusual effects which cannot be realized by the natural materials.. In their article Extreme Asymmetry in Metasurfaces via Evanescent Fields Engineering: Angular-Asymmetric Absorption published in Physical Review Letters, the team from Aalto use gradient metasurfaces to engineer the contrast ratio of brightness for waves coming from two oppositely tilted angles. "Our findings provide the first demonstration that a flat surface can realize extreme optical asymmetry in angle spectrum. This is an important milestone in both physics and engineering communities," says Xuchen Wang, who is currently a third-year doctoral student in Aalto University, and also the responsible person of this work. Xuchen studies electromagnetic metasurfaces under the supervision of Prof. Sergei Tretyakov. Xuchen explains.
Extreme Asymmetry in Metasurfaces via Evanescent Fields Engineering: Angular-Asymmetric Absorption Xuchen Wang, Ana Díaz-Rubio, Viktar S. Asadchy, Grigorii Ptitcyn, Andrey A. Generalov, Juha Ala-Laurinaho, and Sergei A. Tretyakov Phys. Rev. Lett. 121, 256802 – Published 19 December 2018 DOI: https://doi.org/10.1103/PhysRevLett.121.256802
Contact information:
Xuchen Wang Aalto University doctoral student Xuchen.wang@aalto.fi Tel: +358-503097794
